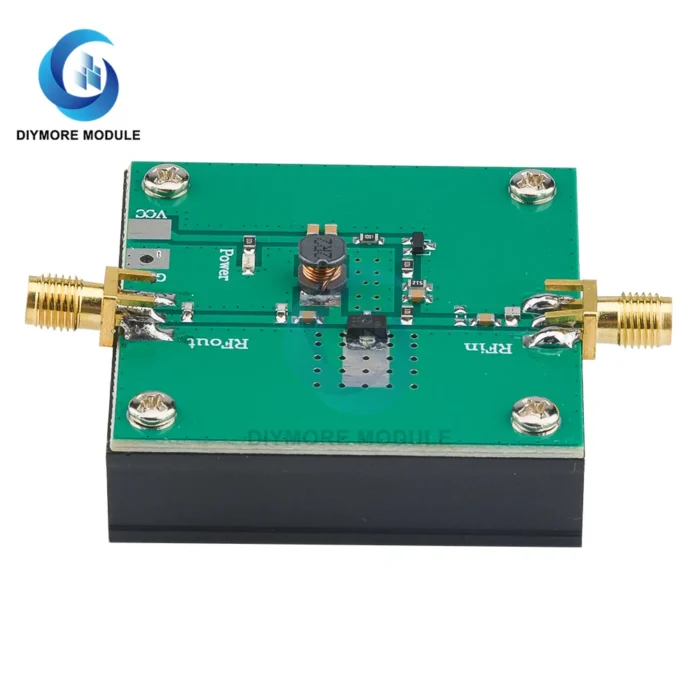

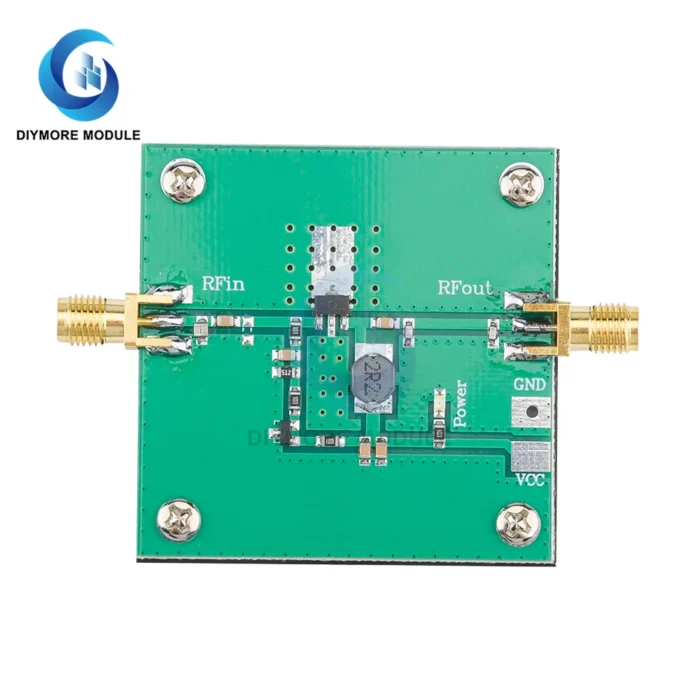

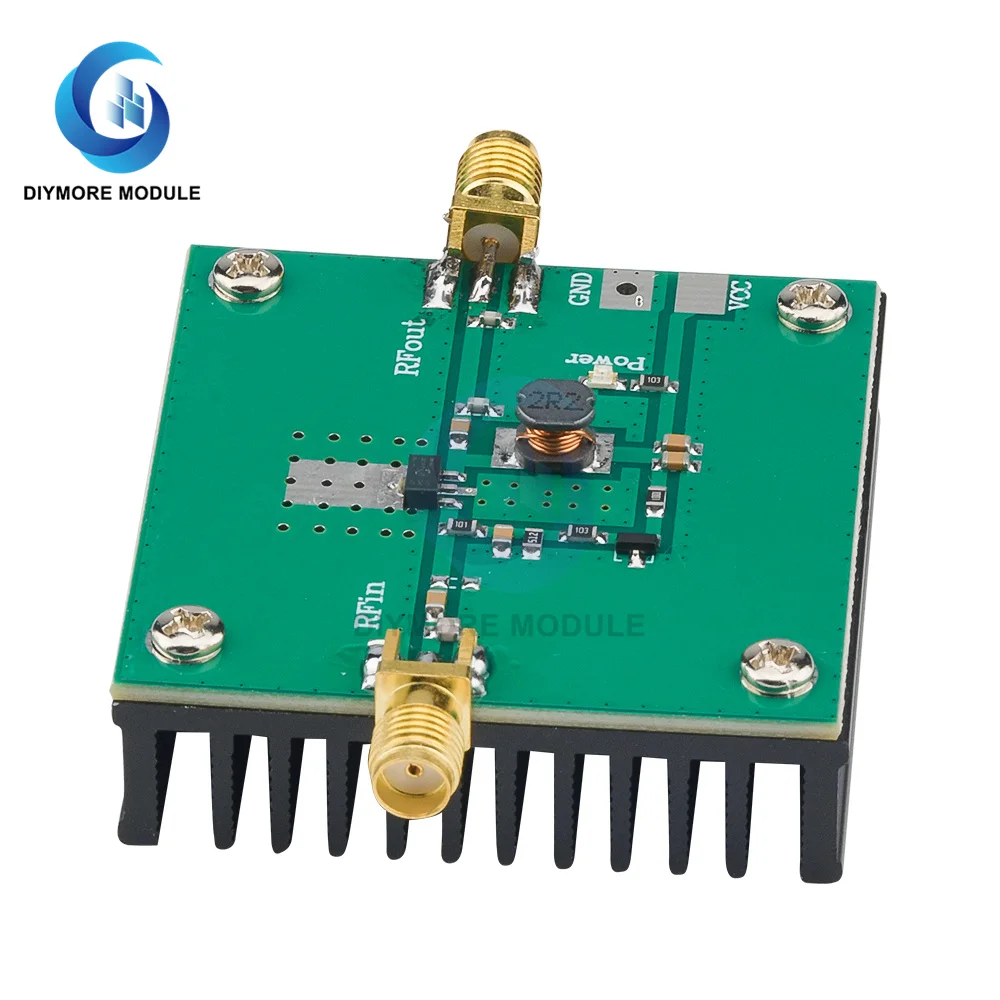

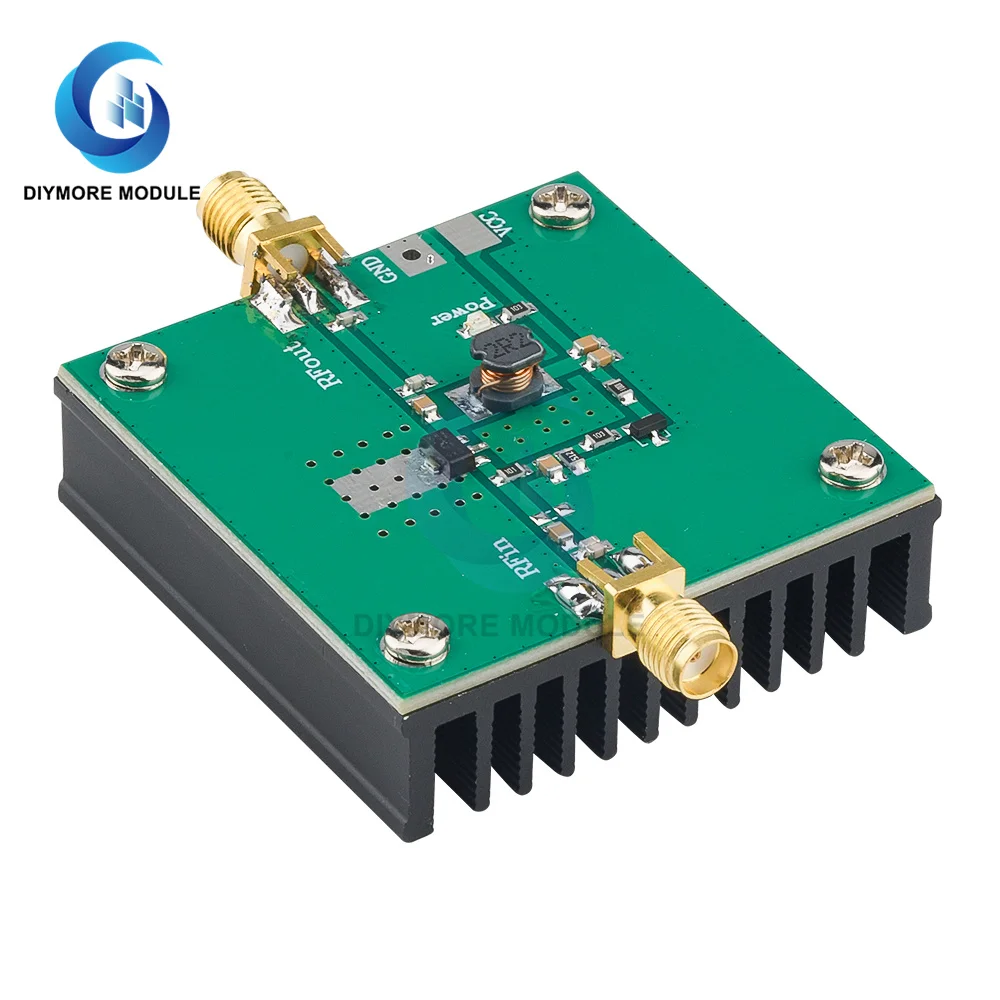

Product Usage:

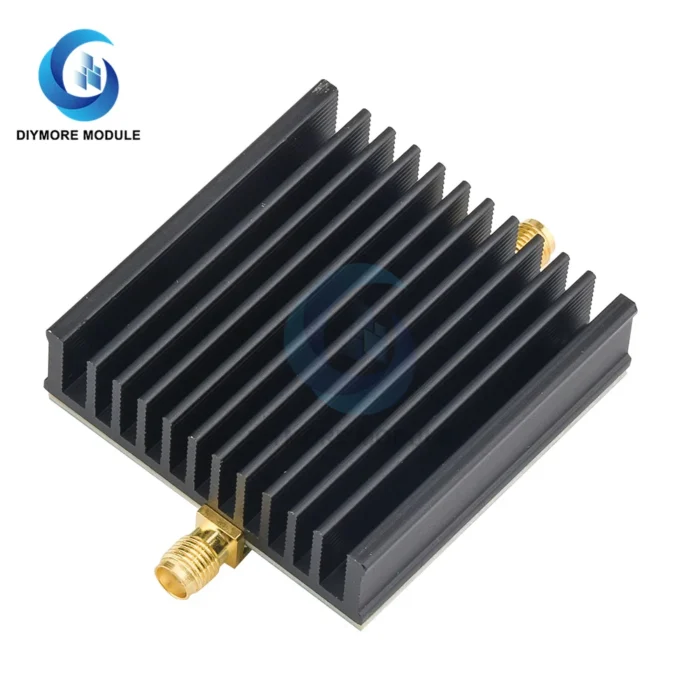

Broadband RF small power amplifier is suitable for all kinds of 380-450MHz launch use, such as wireless remote control, walkie-talkie and other launch use. Input 0.1W, can provide 5.0W@7.2V power output, the amplifier is equipped with heat sink, long-term stable operation.
Technical Parameters:
Operating frequency: 380-450MHz
Input power: 0.1W (20dBm)
Maximum output: 2.5W (34dBm) 5.0V power supply
5.0W (37dBm) 7.2V power supply
8.0W (39dBm) 10.0V power supply (not recommended)
Operating voltage: 5 - 7.2V (DC)
Operating current: 1 - 2A (determined by output power)
RF connector: standard SMA female head

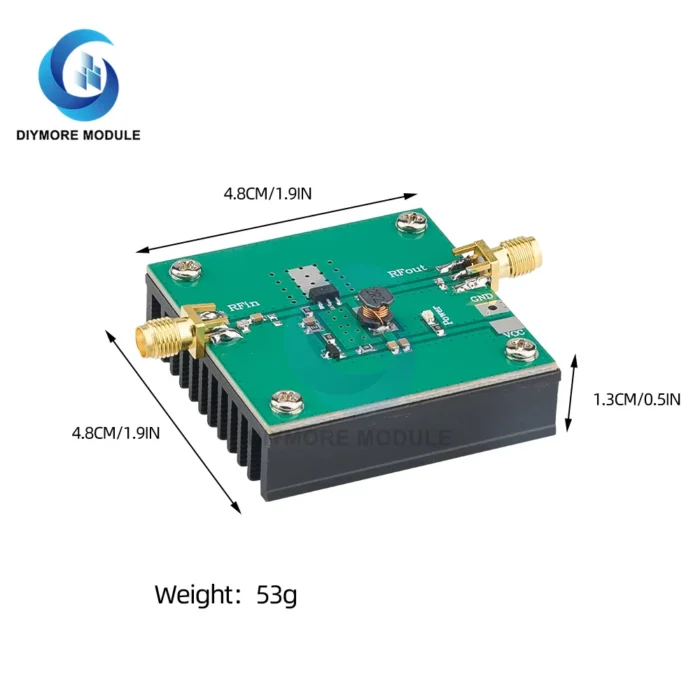

Dimensions: 50*50*15mm (L*W*H)
Product weight: 55g
Package contents:
1 x 433MHz 5W RF Power Amplifier
