Features
- Frequency Range: 433MHz ISM bands
- Sensitivity: -120 dBm

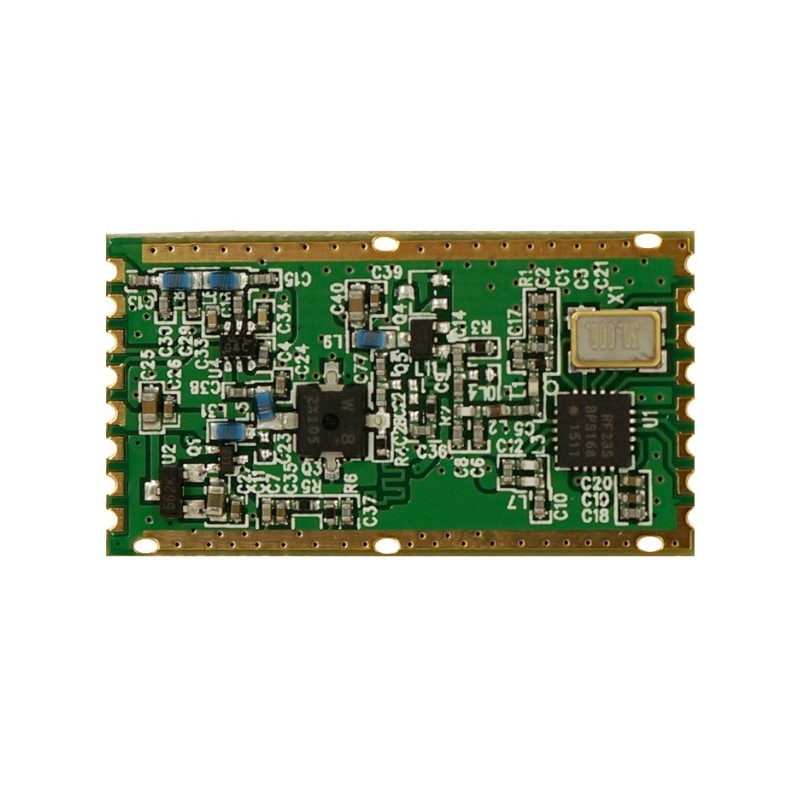

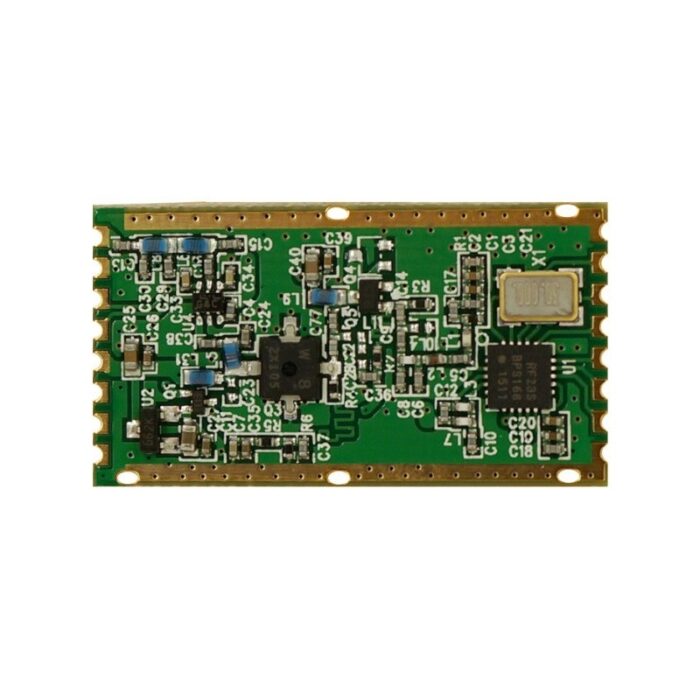

- Output Power Range: +30 dBm Max (RFM23BP)
- Düşük Güç Tüketimi:
- 25 mA alım
- 550 mA @ +30 dBm ile iletim
- Data Rate: 0.123 to 256 kbps
- Modulation FSK, GFSK and OOK
- Power Supply: 3.3 to 6 V
- Ultra Low Power Shutdown Mode
- Digital RSSI
- Wake Up Timer
- Automatic Frequency Calibration (AFC)
- Power On Reset (POR)
- Antenna Diversity and TR Switch Control
- Configurable Packet Handler
- Pre-Signal Detector
- TX and RX 64 Byte FIFOs
- Low Battery Sensor
- Temperature Sensor and 8-bit ADC
- Temperature Range: -40 to +85 °C
- Integrated Voltage Regulatorss
- Frequency Hopping Ability
- On-chip Crystal Adjustment
- 16-PİN SMD Package
- Low Cost
Applications
- Remote Control
- Home Security & Alarm
- Telemetry
- Personal Data Registration
- Toy Control
- Tire Pressure Monitoring
- Wireless PC Accessories
- Remote Meter Reading
- Remote Keyless Entry
- Home Automation
- Industrial Control
- Sensor Networks
- Health Monitors
- Label Readers
